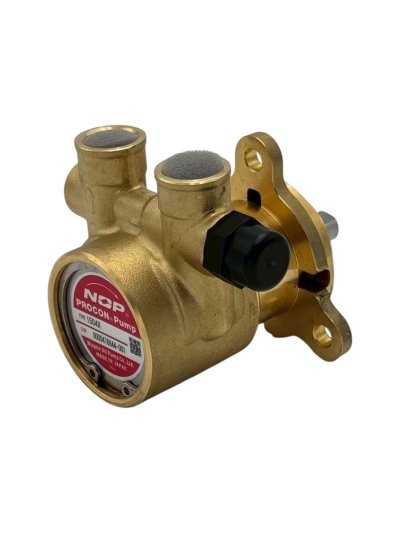

NOP PROCON Pump 1504X

NOP PROCON Pump
Self-priming Rotary Vane Water Pump
Model : 1504X

1 : Pump Series Code, 0.8 l/min to 6.1 l/min (Small Capacity)
5 : Pump Body Material Code, Brass Pump
04 : Pump Size Code, 04
X : Relief Valve Symbol, With Relief Valve

Specification :-
- Main Body Material : Brass Forging
- Discharge Amount : 0.8 l/min to 6.1 l/mi
- Maximum Discharge Pressure : 1.4 MPa
- Relief Valve Pressure Adjustment Range : 1.05 MPa to 1.4 MPa
- Relief Valve Pressure Setting : 1.20 MPa (As shipped from the Factory
- Rotation direction (as seen from the nameplate) : Right
- Mass : 1.15 kg
- Standard Rotation (min-1) : 1450/50Hz, 1750/60Hz

NIPPON OIL PUMP CO., LTD.
Made in Japan
