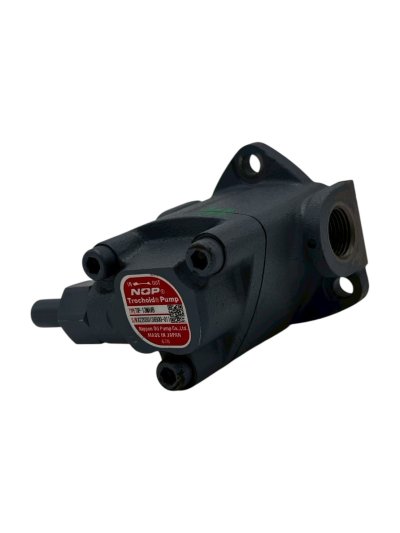

NOP Trochoid Pump TOP-13MAVB

NOP Trochoid Pump
Model : TOP-13MAVB

TOP-13MA : Trochoid Pump (Pump Head)
No Mark : Rotation Direction, Counter-Clockwise Rotation as seen from the end of shaft (Standard Rotation Direction)
VB : Relief Valve, With Relief Valve

Specification :-
- Theoretical Displacement : 4.5 cm3/rev
- Theoretical Discharge @1500 rpm : 6.7 L/min
- Theoretical Discharge @1800 rpm : 8.1 L/min
- Max. Discharge Pressure : 0.5 MPa
- Max. Revolution : 1800min-1
- Inlet/Outlet Port Connection : Rc3/8
- Approx. Weight : 1.1 kg

Mfg. NIPPON OIL PUMP CO., LTD.
Made in JAPAN
