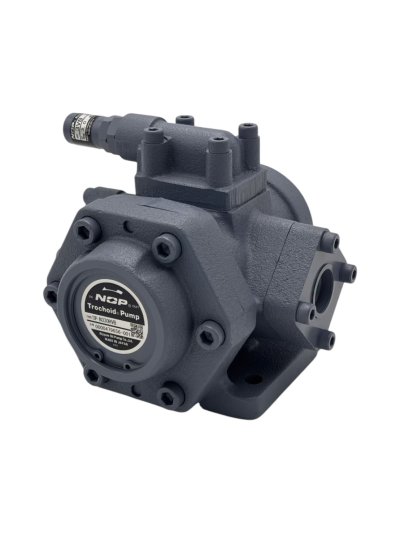

NOP Trochoid Pump TOP-N330HVB, 3.0MPa

NOP Trochoid Pump
Model : TOP-N330HVB, 3.0MPa

TOP-N330H : Pump Head Model
No Mark : Rotation Direction, Clockwise Rotation as seen from the end of shaft (Standard Rotation Direction)
VB : Relief Valve, With Relief Valve (3VB-6L, 3.0MPa)

Specification :-
- Theoretical Displacement : 39 cm3/rev
- Theoretical Discharge @1500 rpm : 58.5 L/min
- Theoretical Discharge @1800 rpm : 70.2 L/min
- Max. Discharge Pressure : 4.0 MPa
- Max. Revolution : 1800 min-1
- Inlet Port Connection : Rc1 1/4
- Outlet Port Connection : Rc1
- Approx. Weight : 15.5 kg

Mfg. NIPPON OIL PUMP CO., LTD.
Made in Japan
