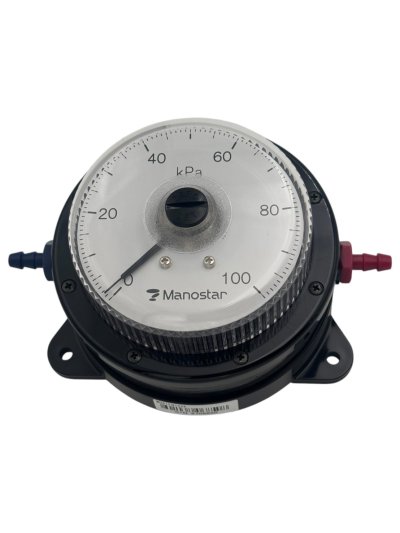

MANOSTAR Pressure Gauge WO81FN100E

MANOSTAR Low Differential Pressure Gauge
Model : WO81FN100E

WO81 : Series
F : Surface Mount
N : None Fixed Indicator
100E : Range Code, 0 to 100 kPa

Specification :-
- Display Range : 0 ~ 100 kPa
- Standard Installation Position : Free Position (Horizontal or Vertical)
- Accuracy at 20°C : Up to ± 1.5% F.S.
- Diaphragm Material : Silicone Rubber
- Diaphragm Pressure Resistance : 150 kPa
- Gases Measured : Air & Non-Corrosive Gases (No Liquid)
- Orientation of Connectors : High Pressure Side (Red), Low Pressure Side (Blue)
- Weight : Approx. 270g

Mfg. YAMAMOTO KEIKI MFG. CO., LTD.
Made in JAPAN
