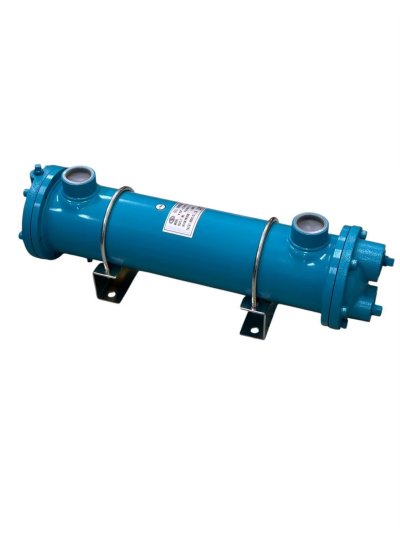

TAISEI Oil Cooler FCF-234-1

TAISEI Oil Cooler
Model : FCF-234-1

FCF : Type, Shell and Tube, Fixed Tube Plate
-
234 : Model, FCF-234
-
1 : Flow Rate, Medium

Specification :-
- Maximum Operating Pressure : Shell Side / 1.0 MPa, Tube Side / 1.0 MPa
- Maximum Working Temperature : Shell Side / 100 °C, Tube Side / 60 °C
- Fluids : Shell side / Mineral Base Oil, Tube Side / Clean Fresh Water.
- Tube Material : 9mm dia. Low Fin Tube（C1220T）
- Heat Transfer Area : 1.7 m2
- Total Length : 547 mm
- Shell Length : 450 mm
- Nozzle Pitch : 350 mm
- Stand Pitch : 270 mm
- Buff. Quantity : 7
- Water Inlet Connection : Rc1
- Water Outlet Connection : Rc1
- Oil Inlet Connection : Rc1 1/4
- Oil Outlet Connection : Rc1 1/4
- Weight : 16 kg

Mfg. TAISEI KOGYO CO., LTD.
Made in JAPAN
