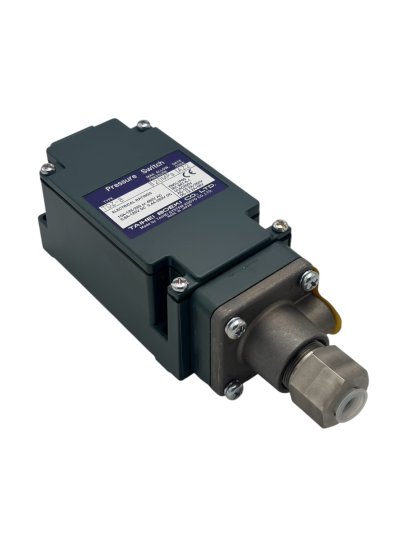

TAIHEI BOEKI Pressure Switch TDZ-8

TAIHEI BOEKI Pressure Switch
Model : TDZ-8

TDZ : Piston Actuator
- : Standard Micro Switch
8 : Range Indication

Specification :-
- Adjustable Differential (Dead Band) Type
- Pressure Medium : Oil
- Actuator : Piston
- Adjustable Range : 2 - 63.5 MPa
- Adjustable Dead band (Low Range) : 2 - 11 MPa
- Adjustable Dead band (Mid. Range) : 2.5 - 12 MPa
- Adjustable Dead band (High Range) : 3 - 12 MPa
- Proof Pressure : 120 Mpa
- Pressure Port Connection : Rc1/4 (PT1/4)
- Micro Switch (Standard) : SPDT (1a, 1b)
- Mass : Approx. 0.7kg

TAIHEI BOEKI CO., LTD.
Mfg. TAIHEI SYSTEM KOGYO CO., LTD.
Made in JAPAN
