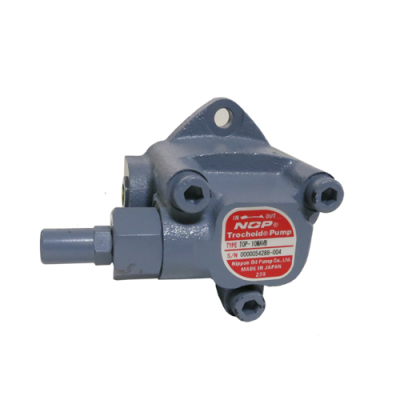

NIPPON Oil Pump TOP-10MAVB
Oil Pump TOP-10MAVB
Product description
TOP : Trochoid Pump
-
10MA : Model
Rotation Direction : No Mark, Counter-Clockwise Rotation as seen from the end of shaft (Standard Rotation Direction)
VB : With Relief Valve
- Theoretical Displacement : 0.8 cm3/rev
- Theoretical Discharge @1500 rpm : 1.2 L/min
- Theoretical Discharge @1800 rpm : 1.4 L/min
- Max. Discharge Pressure : 0.5 MPa
- Max. Revolution : 3000 min-1
- Inlet/Outlet Port Connection : Rc1/8
- Approx. Weight : 0.8 kg
-
10MA : Model
Rotation Direction : No Mark, Counter-Clockwise Rotation as seen from the end of shaft (Standard Rotation Direction)
VB : With Relief Valve
- Theoretical Displacement : 0.8 cm3/rev
- Theoretical Discharge @1500 rpm : 1.2 L/min
- Theoretical Discharge @1800 rpm : 1.4 L/min
- Max. Discharge Pressure : 0.5 MPa
- Max. Revolution : 3000 min-1
- Inlet/Outlet Port Connection : Rc1/8
- Approx. Weight : 0.8 kg
