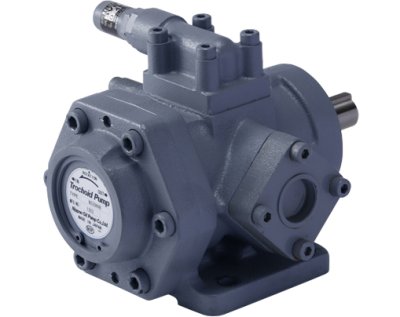

NIPPON Oil Pump TOP-N320HVB, 3.0MPA
Oil Pump TOP-N320HVB, 3.0MPA
Product description
Rotation Direction :- No Mark : Clockwise Rotation as seen from the end of shaft (Standard Rotation Direction)
Relief Valve :- VB : With Relief Valve, 3VB-6L, 3.0MPa
- Theoretical Displacement : 26 cm3/rev
- Theoretical Discharge @1500 rpm : 39.0 l/min
- Theoretical Discharge @1800 rpm : 46.8 l/min
- Max. Discharge Pressure : 4.0 MPa
- Max. Revolution : 1800 min-1
- Inlet Port Connection : Rc1
- Outlet Port Connection : Rc1
- Approx. Weight : 15.4 kg
Sole Agent. NIPPON OIL PUMP CO., LTD.
Mfg. NIPPON GEROTOR CO., LTD.
Made in Japan
Relief Valve :- VB : With Relief Valve, 3VB-6L, 3.0MPa
- Theoretical Displacement : 26 cm3/rev
- Theoretical Discharge @1500 rpm : 39.0 l/min
- Theoretical Discharge @1800 rpm : 46.8 l/min
- Max. Discharge Pressure : 4.0 MPa
- Max. Revolution : 1800 min-1
- Inlet Port Connection : Rc1
- Outlet Port Connection : Rc1
- Approx. Weight : 15.4 kg
Sole Agent. NIPPON OIL PUMP CO., LTD.
Mfg. NIPPON GEROTOR CO., LTD.
Made in Japan
