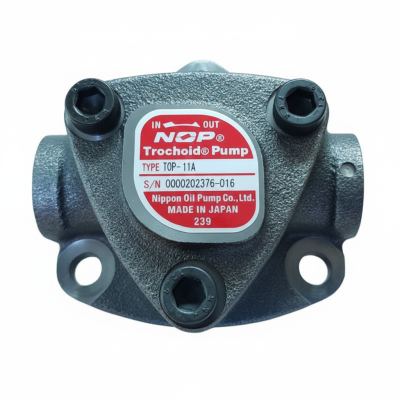

NIPPON OIL PUMP Trochoid Pump TOP-11A

NIPPON OIL PUMP Trochoid Pump
Model : TOP-11A

Rotation Direction : No Mark, Counter-Clockwise Rotation as seen from the end of shaft (Standard Rotation Direction)
Relief Valve : No Mark, Without Relief Valve

- Theoretical Displacement : 1.5 cm3/rev
- Theoretical Discharge @1500 rpm : 2.2 L/min
- Theoretical Discharge @1800 rpm : 2.7 L/min
- Max. Discharge Pressure : 0.5 MPa
- Max. Revolution : 2000 min-1
- Inlet/Outlet Port Connection : Rc1/8
- Approx. Weight : 0.5 kg

Mfg. NIPPON OIL PUMP CO., LTD.
Made in Japan
