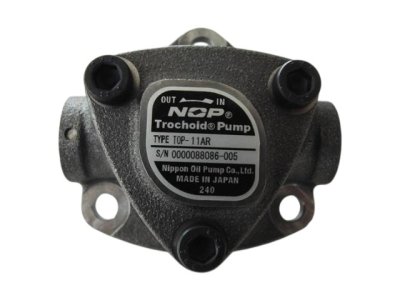

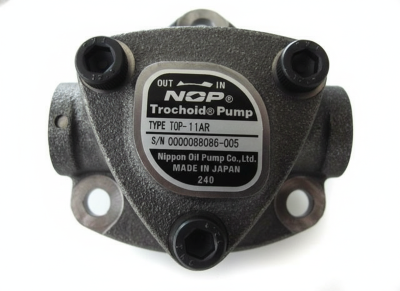

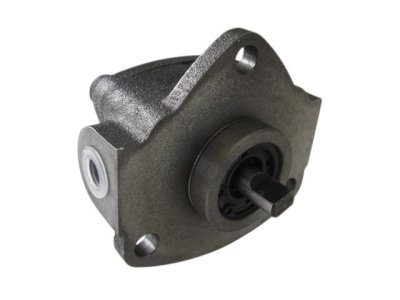

NIPPON OIL PUMP Trochoid Pump TOP-11AR

NIPPON OIL PUMP Trochoid Pump Without Motor
Model : TOP-11AR

Rotation Direction :- R : Clockwise Rotation as seen from the end of shaft
Relief Valve :- No Mark : Without Relief Valve

- Theoretical Displacement : 1.5 cm3/rev
- Theoretical Discharge @1500 rpm : 2.2 l/min
- Theoretical Discharge @1800 rpm : 2.7 l/min
- Max. Discharge Pressure : 0.5 MPa
- Max. Revolution : 2000 min-1
- Inlet/Outlet Port Connection : Rc1/8
- Approx. Weight : 0.5 kg

Sole Agent. NIPPON OIL PUMP CO., LTD.
Mfg. NIPPON GEROTOR CO., LTD.
Made in Japan
